Hoin HOP-HQ490 Thermal Transfer & Direct Thermal Label Printer

🖨️ Printer Specifications Overview
🔧 Hardware & Build
Control Panel: Power switch, Feed button, LED indicator

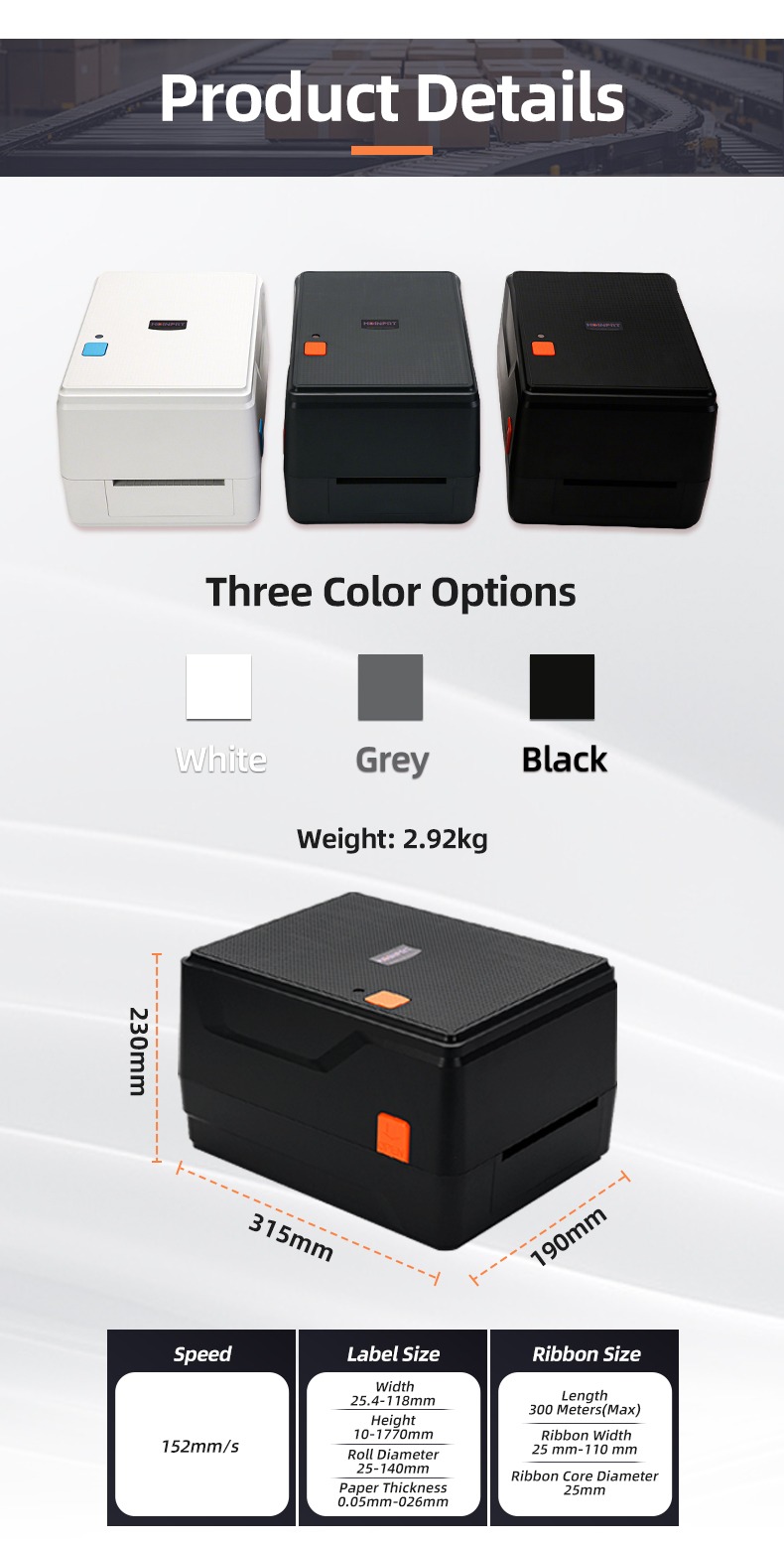

Dimensions: 315 mm × 230 mm × 190 mm
Print Location: Center printing
🧾 Printing Capabilities
Printing Methods: Direct Thermal, Thermal Transfer
Resolution:
203 dpi (Speed: 6.0 inch/sec)
300 dpi (Speed: 3.0 inch/sec)
Print Speed: Up to 6.0 inch/sec
Print Density: 1–15 levels
Minimum Print Height: 10 mm
Maximum Print Width: 104 mm (4.25 inch)
Maximum Print Height: 1770 mm
Rotation Support: 0°, 90°, 180°, 270°
📄 Media Handling
Paper Width: 25.4 mm – 104 mm (1.0 – 4.5 inch)
Paper Thickness: 0.05 mm – 0.26 mm
Paper Types:
Roll Type: Inner/Outer roll, max diameter 5 inch (external: 8 inch)
Label Types:
Direct Thermal: Continuous, gap, black mark, fan-fold, punched hole, label paper, tag paper card
Thermal Transfer: Continuous, gap, black mark, fan-fold, perforated paper, label paper, tag paper card, coated paper, silver paper, washing label, shelf label
📡 Sensors
Gap Sensor
Black Mark Sensor
Printer Head Up Sensor
Temperature Sensor (THP)
Ribbon Sensor
🔤 Fonts & Barcode Support
Built-in Fonts: 8 bitmap fonts
1D Barcodes:
Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8/13/128, UPC-A/E, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
2D Barcodes:
PDF-417, Maxicode, DataMatrix, QR Code, Aztec
🖥️ Software & Compatibility
Emulation Modes: TSPL2, EPL, ZPL, DPL
Drivers:
Windows: XP, 7, 8, 10 (32/64-bit)
Mac: v10.6.8 to v10.11.x
Linux: CentOS 7.0 (X64), Ubuntu 12.04 (X86/X64)
🔌 Power & Durability
Power Adapter:
Input: AC 110V–260V, 50/60Hz
Output: DC 12/24V—2.5A (Instantaneous 10A)
TPH Life: Over 100 million pulses or 30 km
Gear Life: Over 200 km
🌡️ Environmental Conditions
Operating Temperature: 5℃ – 50℃ (non-condensing)
Storage Temperature: -20℃ – 60℃ (non-condensing)
Operating Humidity: 20% – 85% RH (non-condensing)
Storage Humidity: 5% – 95% RH (non-condensing)
